SERIES 5

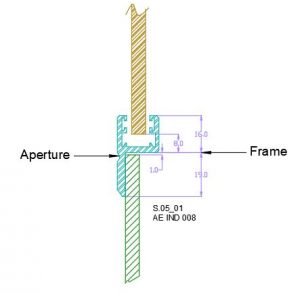

The Series 05 section is a medium weight through fixed section. This section is recommended for inland waterways, Estuary and Coastal uses.

Fixings are visible on the outer frame, as this section does not come with a screw cover. This frame can have a minimum radius of 50mm and has a central ‘V’ groove with angular edges.

The section accepts glazing from 4mm to8mm in thickness or 6mm thick for sliding panes. Glazing can be tinted and the majority is available as double glazed or curved.

Suitable for use as fixed, sliding, half drop, hinged or hopper units.

Powder coating or anodise finishes are available. The vast majority of our customers choose to have the combination of both anodised and powder coated finish.

  • Can be radius or mitred

  • Glazing can be Toughened Glass, acrylic, polycarbonate (other options available)

  • Available in a range of window types

CASE STUDY: Coming Soon

Window Types

FIX
TOP-HUNG
HALF-DROP
SLIDING
MULTI-PANE

 Glazing Options

Single Ply (6mm-12mm)
Laminated (up to 20mm)
Double-Glazed (up to 20mm)
DATASHEET
