(Clamp – in with visible or concealed fixings)

Our Series 11 section is our medium to heavyweight section. This section is suitable for offshore use in workboats and motor cruisers.
Can have a radius from 90mm and can have two types of finishes, either anodised or powder coated. This frame holds glazing from 6mm to 10mm thick, in a variety of options. The glazing can have a tint if required and is available as double glazed.
Clamp in windows have an elegant appearance and are less likely to leak, due to there being no fastening holes. They are therefore quicker to fit than through fix frames as no drilling is required.

  • Quick and easy to fit

  • Medium to heavyweight frame

  • Glazing can be Toughened Glass, acrylic, polycarbonate (other options available)

  • Available in a range finishes

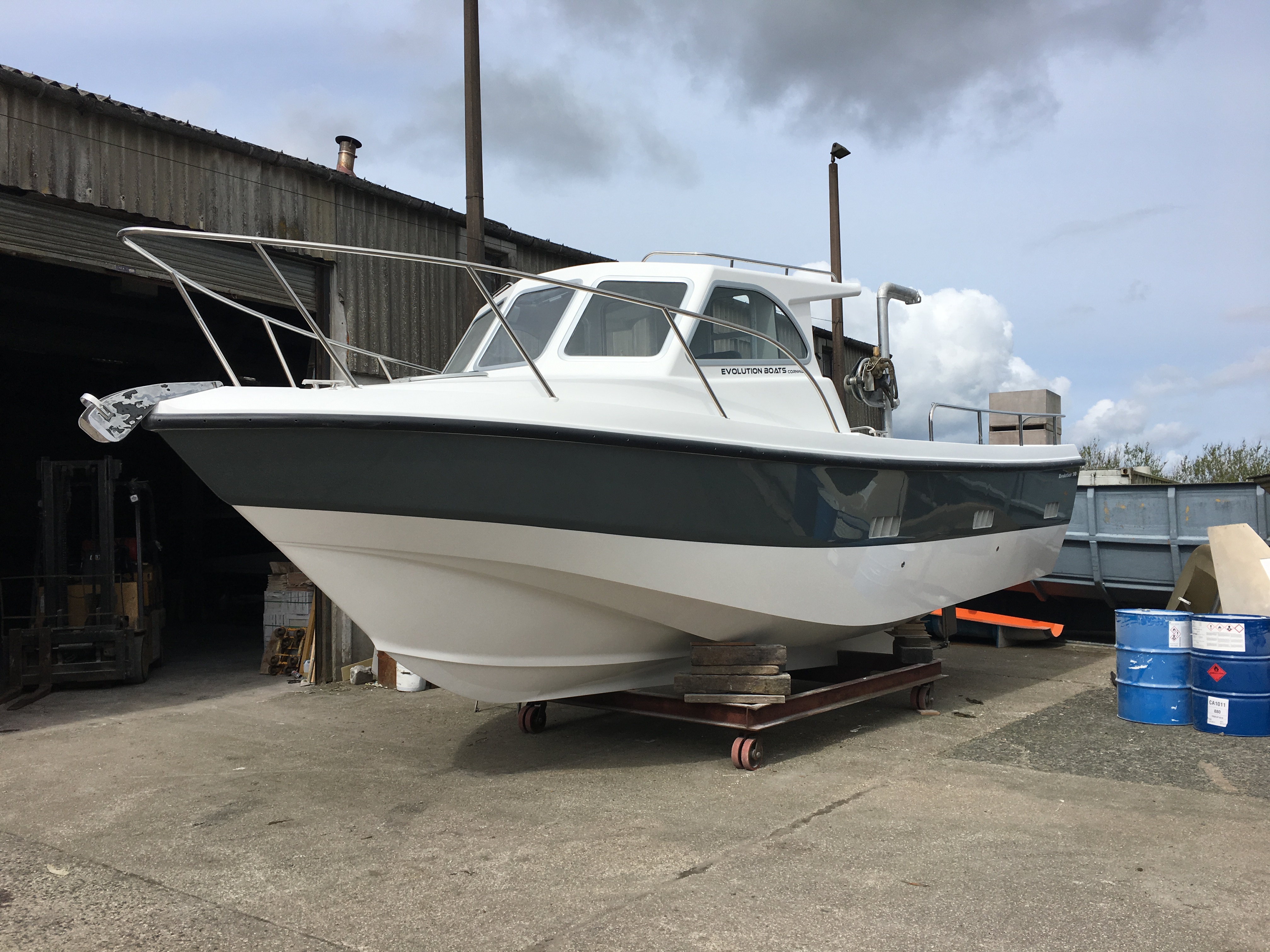

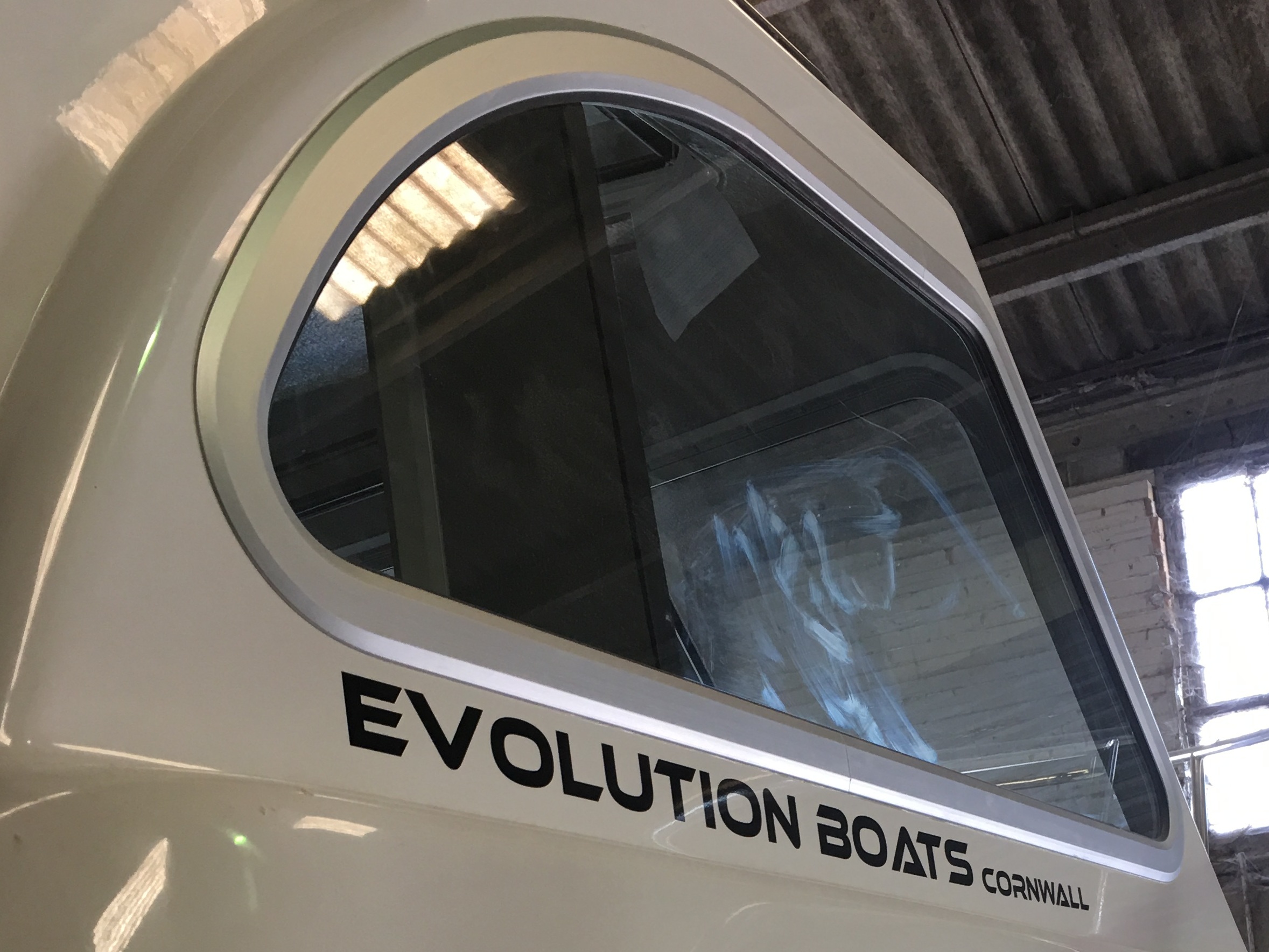

CASE STUDY: Evolution 30 Boat

Evolution Boats approached Seaglaze at the beginning of 2018 looking for a set of windows and doors for the new Evolution 30 vessel the company were building for a customer in France. We recommended the series 11 clamp-in frames for easy installation and adherence to ISO 12216.

Window Types


 Glazing Options

Single Ply (6mm-10mm)
Laminated (up to 20mm)
Double-Glazed (up to 20mm)


We are very impressed with windows and door you supplied for our Evolution 30.

Diane Ching, Evolution Boats Ltd

I am so impressed with how professional and smooth the process was. All of the crew involving changing the window had never had a window delivered on time before so getting 10 custom windows delivered on time is priceless! The windows were packed up well and looked better than I could have wished for.

Thea Lehner, Dutch Barge Owner

Finally in, looking good, and most importantly….watertight.

Roger Pyle, Moody Boat Owner
