Project Description

SERIES 10

(Clamp – in with visible or concealed fixings)

The Series 10 is the most lightweight and smallest clamp‐in section on offer. Recommended for inland, coastal craft and other applications.
As a clamp‐in section, there are no external fastening holes, therefore a common source of leaks has been eliminated. Clamp in windows are quicker and easier to fit than through‐fix windows, requiring less man power.
This section accepts glazing from 4mm to 6mm in thickness, in a range of options. However in double glazed units this section can take up to 22mm thick glazing.
The radius can be from 65mm up to 165mm. Windows manufactured can be fixed, half drop, top hung, sliding or hopper unit.
Powder coated or anodised finishes are available. A popular choice is a combination of both, to prevent corrosion with a colour finish.

  • Quick and easy to fit

  • Lightweight and attractive finish

  • Glazing can be Toughened Glass, acrylic, polycarbonate (other options available)

  • Available in a range finishes

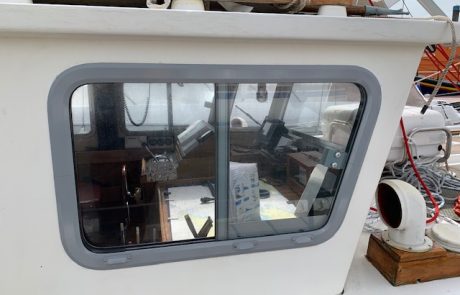

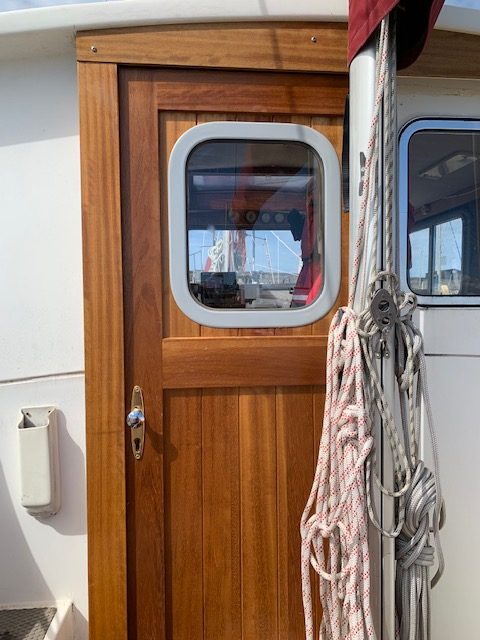

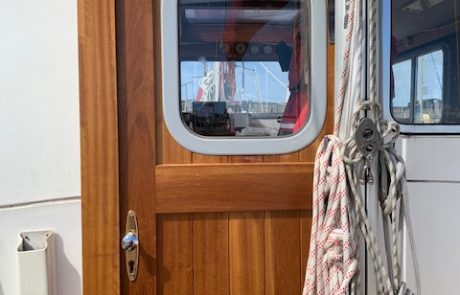

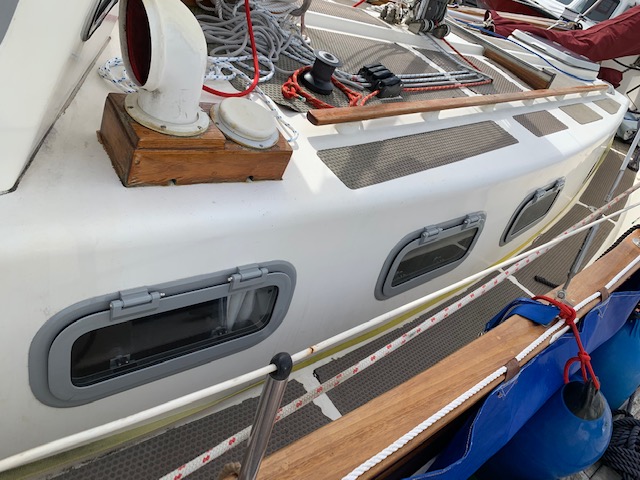

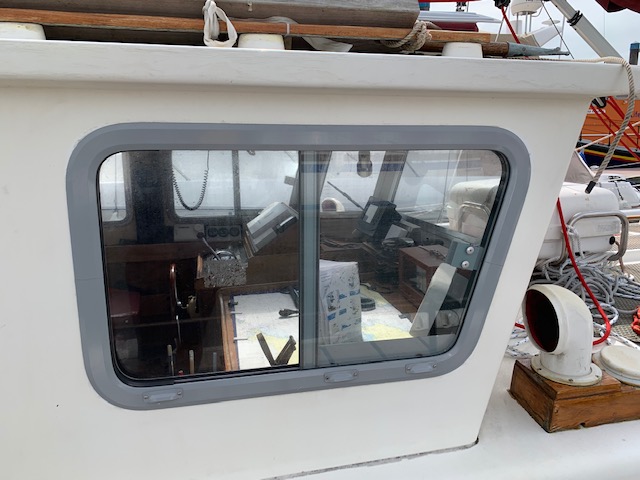

CASE STUDY: Fisher 34

Replacement windows needed over the course of a year for a 34 foot motor sailor that cruises from the Shetland Islands to South Brittany. A range of styles were requested from sliding to top hung to fixed for various areas of the vessel. Seaglaze worked with both the owner and their engineer to create the perfect windows for their specification.

Window Types

FIX
TOP-HUNG
HALF-DROP
SLIDING
MULTI-PANE

 Glazing Options

Single Ply (6mm-10mm)
Laminated (up to 22mm)
Double-Glazed (up to 22mm)
DATASHEET
